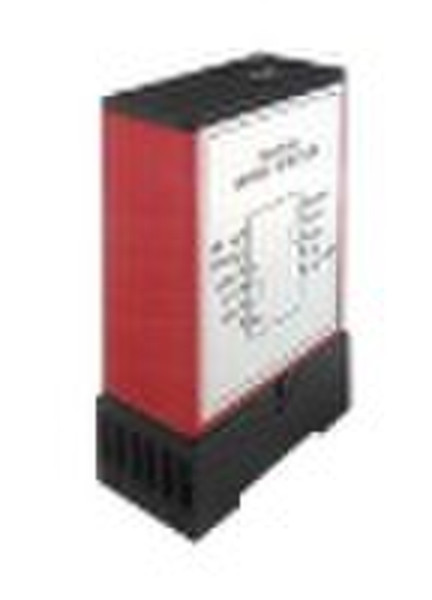

HengAn Wagon Detector

Install vehicle detector: vehicle detector must be put in from detecting coil as close as possible, waterproofing and moisture-proof dry environment. Detector can good work depends largely on it the connected induction coils. Technical Parameters: Ac voltage: 220V 50 HzDc voltage: 12VPower: less than 3WWorking environment temperature: - 40 °C + 65 °CStorage temperature: - 40 °C + 85 °CRelative humidity: the biggest 95%Working frequency: 50KHz 250KHzSensitivity: four POTS adjustmentResponse time: 100msSignal keeps time: not restrictedRelay: 250V AC/triple-aSystem to adjust: automatically compensates for the influence of climate, the largest 50 per hour °C. Namely environmental temperature cannot transient, should be in per hour°C within 50.Coil inductance coil plus connecting capacity: for 40-1000uH, ideal value should be in 80-500uH between.Coil connections: maximum length for 10 meters per meter, connecting at least should twist heave 20 times.Power lost when the processor time: approximate 2S returnsProtective level: IP30Overall dimensions: 113 * * 38 (76) includes base
